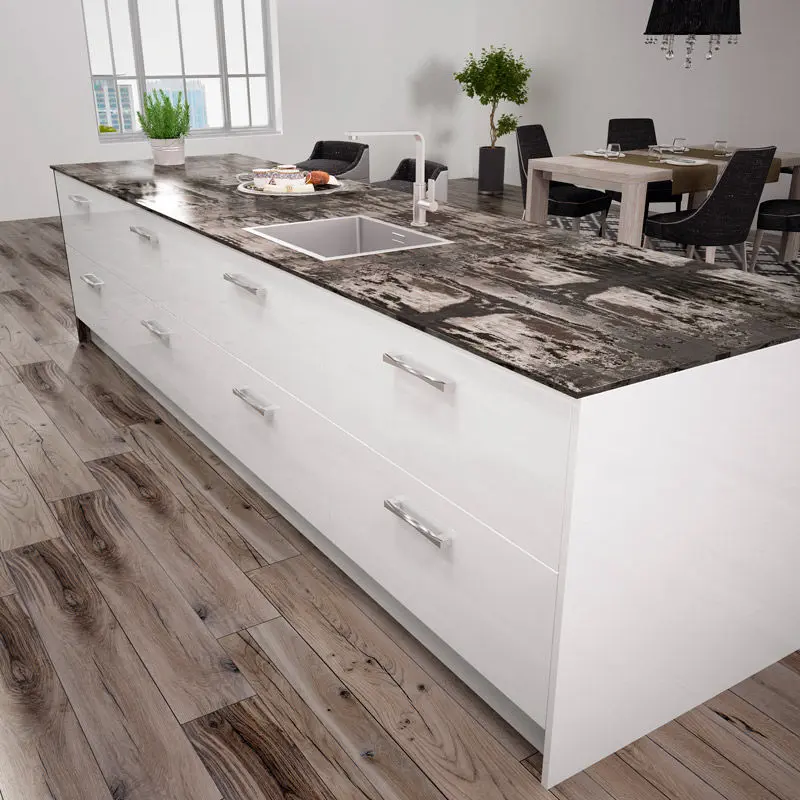

Luxe kitchen island


LUXE Series

High gloss finished panel with excellent physical and
mechanical properties. Perfect for all types of furniture
and decorative applications.

Plywood Melamine Box
Plywood + Melamine Cabinet Box

Full Extension Soft-Close double wall Metal Grey or Solid Wood Dovetail Drawer Box
Wood Dowel & Quick Screw Assembly
Engineered Wood Door & Drawer Fronts
13” Wall Cabinet Depth
18" depth Adjustable Shelf with Full Edge Banding
6 ways Adjustable Fully Concealed Soft-Closing Hinges
3/4" Plywood Box With White Melamine
1/4" Plywood Back Panel
Top & Back Support Rails
Integrated Toe Kick; 4 ½” Height with 3” Recess. Optional Adjustable screw legs for 4-½” toe space
¾” Panel or decorative door required to finish exposed ends


Natural Wood Box
Natural Wood Cabinet Box

① Full Extension Soft-Close double wall Metal Grey or Solid Wood Dovetail Drawer Box
② Wood Dowel & Quick Screw Assembly
③ Engineered Wood Door & Drawer Fronts
④ 13” Wall Cabinet Depth
⑤ 18" depth Adjustable Shelf with Full Edge Banding
⑥ 6 ways Adjustable Fully Concealed Soft-Closing Hinges
⑦ ¾” Plywood Box With Natural Birch wood veneer interior
⑧ 1/4" Plywood Back Panel
⑨ Top & Back Support Rails
⑩ Integrated Toe Kick; 4 ½” Height with 3” Recess. Optional Adjustable screw legs for 4-½” toe space
⑪ ¾” Panel or decorative door required to finish exposed ends

LUXE High Gloss Characteristics

  • High Scratch Resistance
  • High Gloss Image Quality
  • Stain Resistance
  • Easy Cleaning
  • Long Durability
  • Antibacterial Treatment
  • Mdf Carb 2 & Uv Stability
  • Chemical Resistance
  • Uniform Batch Color
  • High Gloss Solid Colors,
  • Woodgrain, Marble, Stone
  • Standard Size 4x9 18mm

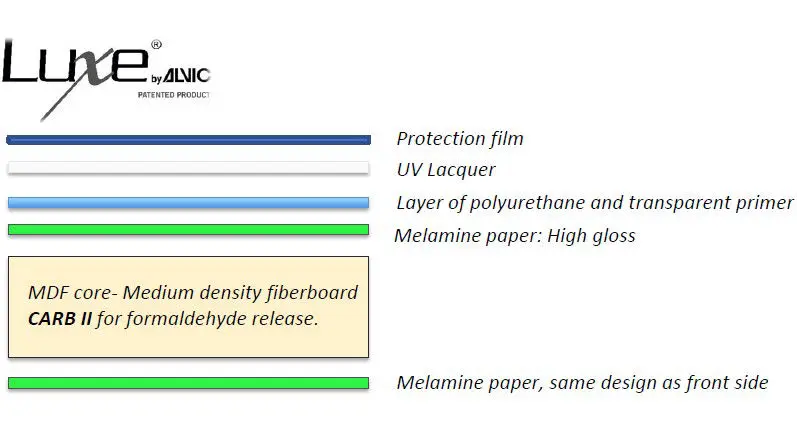

Panel Composition

** Edge of ABS, PP or PMMA and glued with polyurethane glue (PUR) More resistant to the humidity than the laser edge.

Technical Specifications

  • Cold Check
    A sample is placed at 60ºC (140ºF) during 1 hour, at -20ºC (-4ºF) during another hour and finally at 20ºC (68ºF) for 15 minutes. The same is done 40 times.
  • Color Stability
    No difference in color between batches of production. Is named the ‘Delta E’. The ‘Delta E’ above 0,7 is visible to the human eye. NO yellowing UV resistant

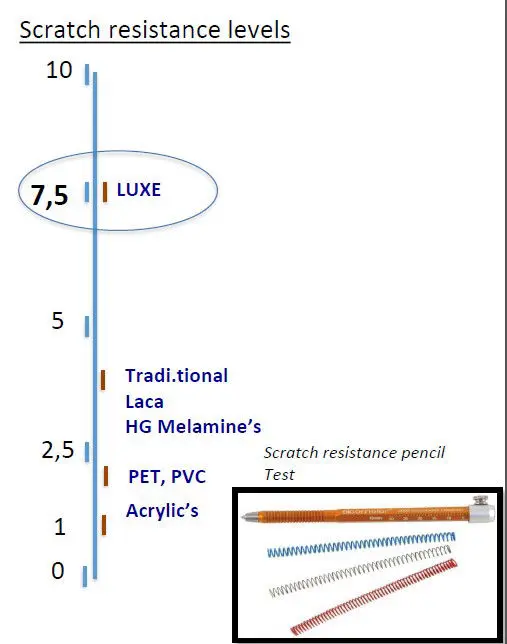

  • Scratching resistance
    The minimum applied load by a diamond scratching point of defined geometry, which produces a continuous surface scratch, visible to naked eye. Expressed in Newton.
luxe tech spec 1

Technical Specifications

Cold Check
A sample is placed at 60ºC (140ºF) during 1 hour, at -20ºC (-4ºF) during another hour and finally at 20ºC (68ºF) for 15 minutes. The same is done 40 times.

Color Stability
No difference in color between batches of production. Is named the ‘Delta E’. The ‘Delta E’ above 0,7 is visible to the human eye. NO yellowing UV resistant

Scratching resistance
The minimum applied load by a diamond scratching point of defined geometry, which produces a continuous surface scratch, visible to naked eye. Expressed in Newton.

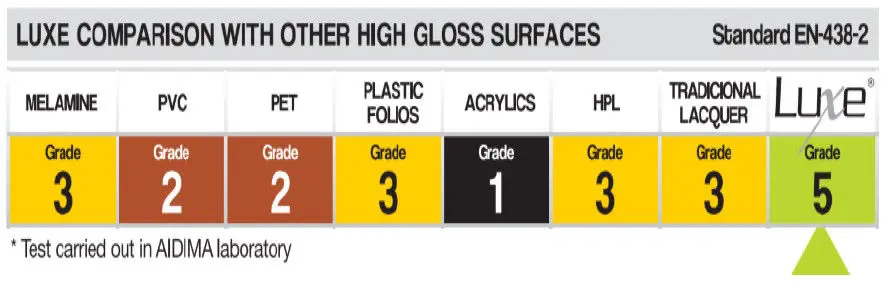

Luxe comparison chart
